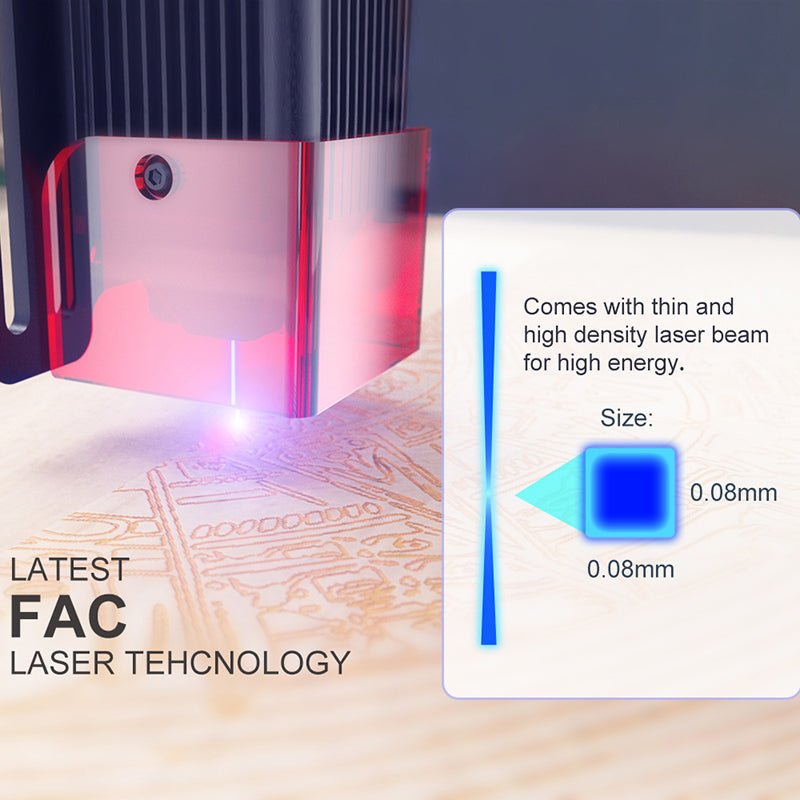

【Compressed Spot Technology】Ray 5 laser module uses laser technology to compress the laser spot, and the size of the laser spot is 0.08 * 0.08mm. The engraving effect is more accurate. The laser spot is smaller, the energy will be more concentrated and the engraving accuracy will be higher.

【Eye Protection】The laser head is equipped with the latest panoramic filter glass protective cover, which plays a good role in protecting the eyes, filtering 97% of ultraviolet rays, and the engraving is clear.

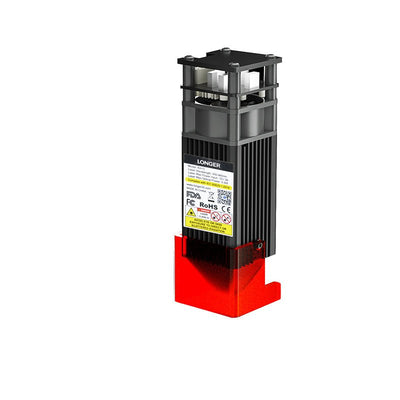

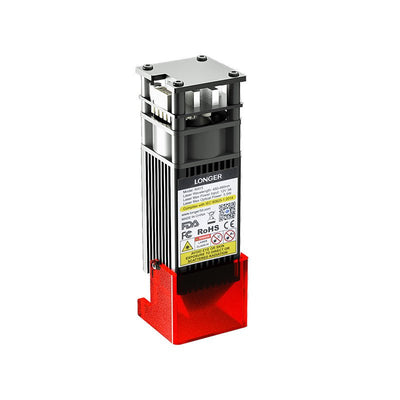

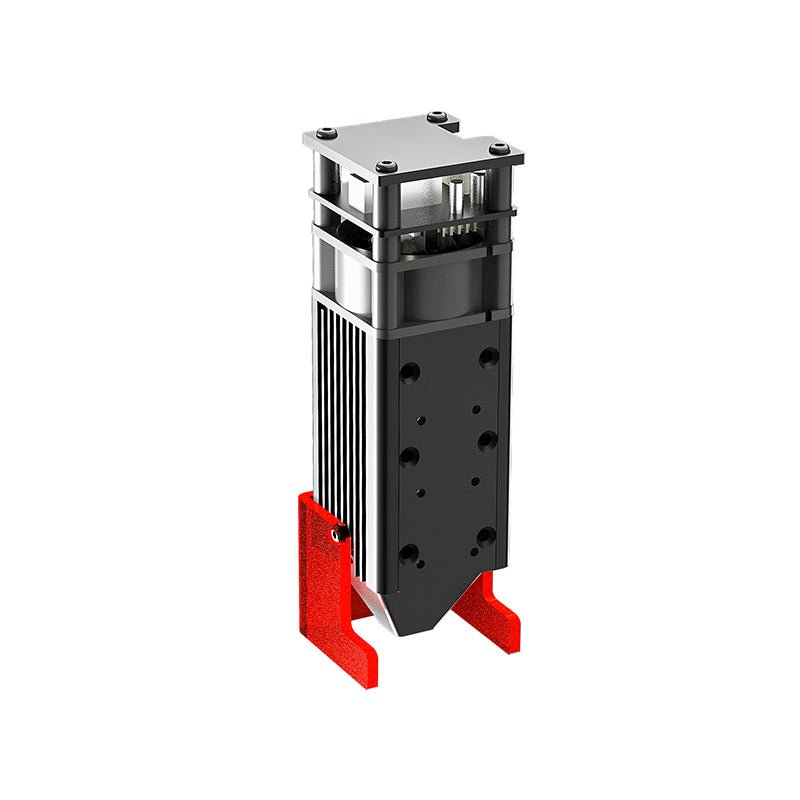

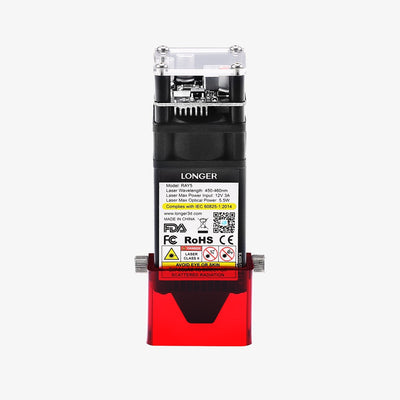

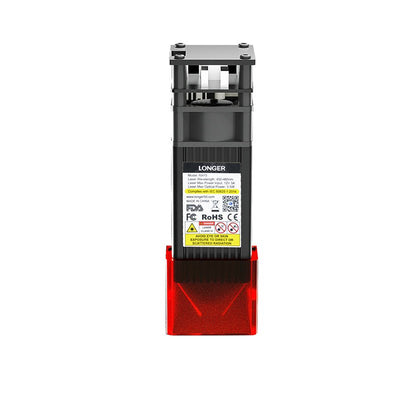

【Easy to Use】 As a plug-in type laser head, easy to adjust, the Ray5 5W laser head is easy to install, easy to adjust, the connection is convenient, and suitable for DIY engraving machines.

【Applicable Materials】Engraving: Plywood, Basswood, Hardwood, Pinewood, Acrylic, Kraft paper, Stainless steel, Aluminum alloy, Ceramics, etc.
Cutting: 6mm Basswood, 3mm Acrylic, 2mm Bamboo, Kraft paper, etc.

【Wide Application Scene】Below is a list of some of the most popular laser engraving ideas: Company logos, Company logos, Signage, Christmas ornaments, Spice jars, QR codes and barcodes for clients, Photo engraving, Personalized products, Business cards, Wine glasses, Key chains, Customized jewelry, Theme toy boxes, Coasters, Artwork, Celebration and special occasion gifts, Custom metal cups.

【Specifications】
Laser Technology: Single Diode Laser with FAC
Wavelength: 450 - 460 nm
Max Power Input: 12 V 3 A
Optical Power Output: 5 - 5.5 W
Focus Type: Fixed Focus - 30mm(1.18inch) Focal length
Dot Size at Optimal Focus: 0.08 x 0.08 mm
Laser Class: FDA Class IV, or Class 4 IEC standard
Engraving:  Plywood, Basswood, Hardwood, Pinewood, Acrylic, Kraft paper, Stainless steel, Aluminum alloy, Ceramics, etc.
Cutting: 6mm Basswood, 3mm Acrylic, 2mm Bamboo, Kraft paper, etc.
Working life: 10000 hours
Working Temperature: 0℃~70℃
outline size: 45 x 43 x 160 mm(1.77*1.69*6.30inch)
Net weight: 285g
package size : 230*100*125mm(9.06*3.94*4.92inch)
package weight: 435g

【Packing List】1x 5W laser module;1x focusing column;
